Why Low-Voltage Cable Should Not Be Supported by Sprinkler Piping
Fire sprinkler piping, hangers, braces, valves, and related components are part of a dedicated life-safety system. They should not be used as a convenient support path for data, access-control, alarm, audio, or video cabling.
Low-voltage cable should be routed on supports selected for the cable type, load, environment, and adopted requirements. The final installation must follow the approved plans, current locally adopted codes, manufacturer instructions, and the authority having jurisdiction.
Why attaching cable to sprinkler piping creates problems
- Unapproved loading: Sprinkler piping and its supports are designed for the sprinkler system, not for unrelated cable bundles.
- Inspection access: Added wiring can obstruct valves, gauges, drains, test connections, couplings, and other service points.
- Maintenance conflicts: Work on one system can disturb or damage the other.
- Identification: Cabling draped across sprinkler components makes system ownership and troubleshooting less clear.
- Approval risk: The fire sprinkler contractor, electrical inspector, design professional, or AHJ may require the unrelated cabling to be removed and rerouted.

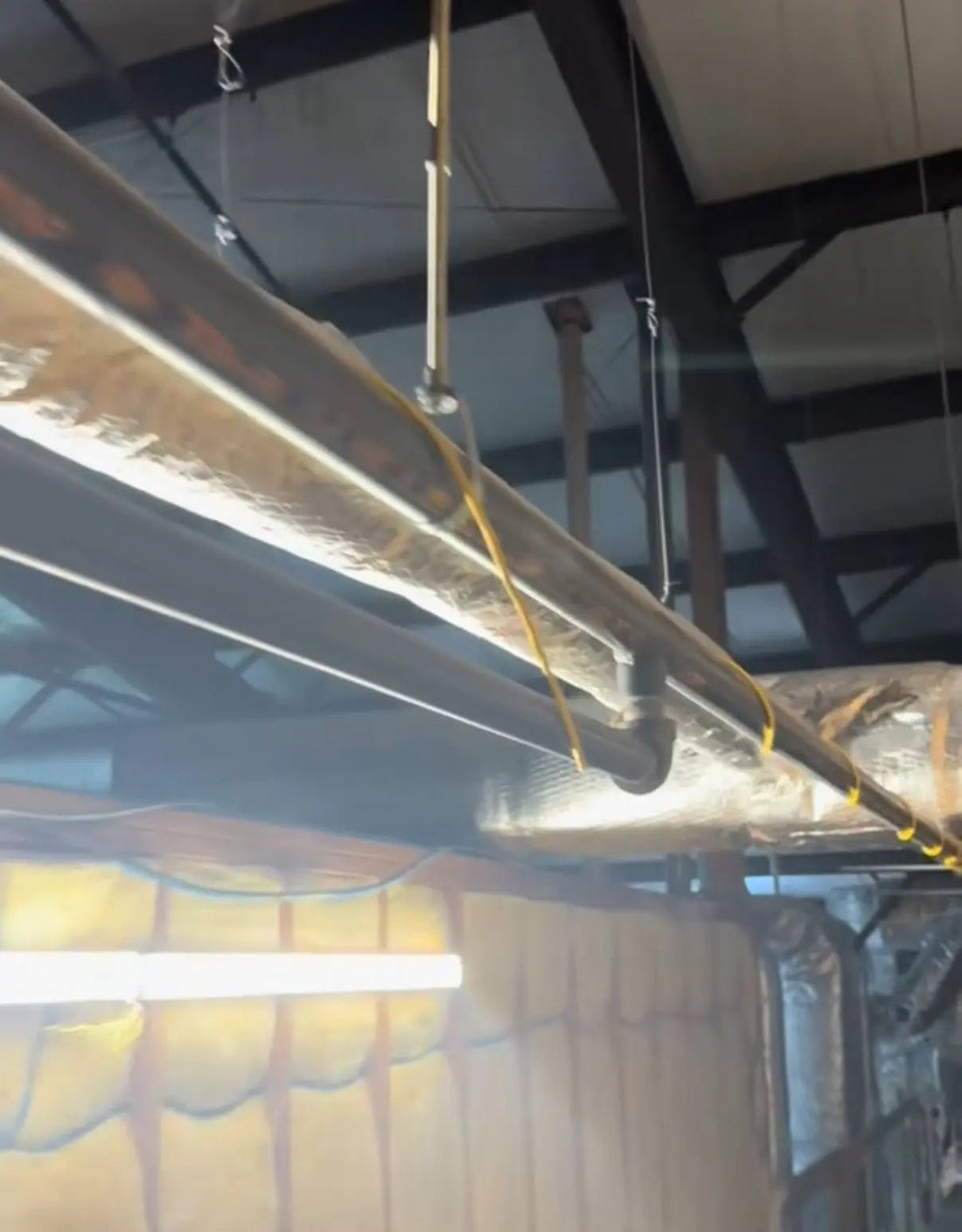

Examples that should be corrected
- zip ties wrapped around sprinkler mains, branch lines, risers, or drops;
- cable resting on sprinkler piping or suspended from sprinkler hangers;
- bundles attached to seismic braces or other sprinkler supports;
- wiring routed across valves, gauges, inspectors' test connections, or alarm interfaces;
- new cable added to an existing unsupported bundle because the route is convenient.
Use an independent cable pathway
The correct alternative depends on the building and cable system. Common methods can include listed J-hooks, cable tray, conduit, ladder rack, bridle rings, or other supports approved for the application. Supports should attach to the building structure or another approved pathway—not to the sprinkler system.
The cable contractor should confirm support spacing, cable fill, bend radius, environmental rating, separation from other systems, firestopping, and access above ceilings. The selected method must also avoid sprinkler spray-pattern obstructions and preserve access for inspection and service.
What to do when the condition already exists
- Document the route. Photograph where the cable begins, where it is attached, and the equipment it serves.
- Avoid disturbing the sprinkler system. Do not pull, twist, bend, or use sprinkler components as leverage.
- Install an approved independent pathway. Support the cable before removing the improper ties or contact points.
- Inspect for damage. If piping, hangers, braces, fittings, or devices appear to have moved or been damaged, have the licensed sprinkler contractor evaluate them.
- Confirm acceptance. Where the work is part of a permitted project, coordinate with the responsible contractors and AHJ before closing ceilings or requesting inspection.
Coordinate the right trades
A low-voltage or electrical contractor can provide the new cable pathway and reroute the wiring. A licensed sprinkler contractor should address any suspected impact to the sprinkler system. The design professional or AHJ determines what is acceptable for the specific project.
NFPA's overview of sprinkler piping hangers and supports explains that sprinkler piping support is engineered around the sprinkler system's loads. Always confirm the edition adopted for the property and local amendments.
