Door Contact Gap Tolerance: Preventing False Alarms

A door contact can test correctly while a technician is standing beside it and still create intermittent alarms after the building returns to normal use. The usual cause is insufficient operating margin: the magnet and switch are close enough today, but door movement, vibration or temperature changes push them outside the reliable gap.

What contact “gap” means

The gap is the distance and alignment range within which the magnetic contact reports the door closed. The manufacturer normally specifies make and break distances for the exact switch and magnet combination.

Do not select a contact by appearance alone. A compact residential contact, commercial wide-gap contact and overhead-door switch may all use a magnet, but they are designed for different movement, mounting and abuse.

Why commercial doors create more movement

• high cycle counts and repeated slamming;
• door-closer or latch adjustments;
• hinge wear and frame movement;
• wind pressure on exterior openings;
• temperature and moisture changes;
• steel doors and frames that affect the magnetic field;
• forklifts, carts or deliveries striking the hardware.

A commercial opening needs enough margin to remain reliably closed through normal movement without allowing the alarm zone to stay closed when the door is actually open.

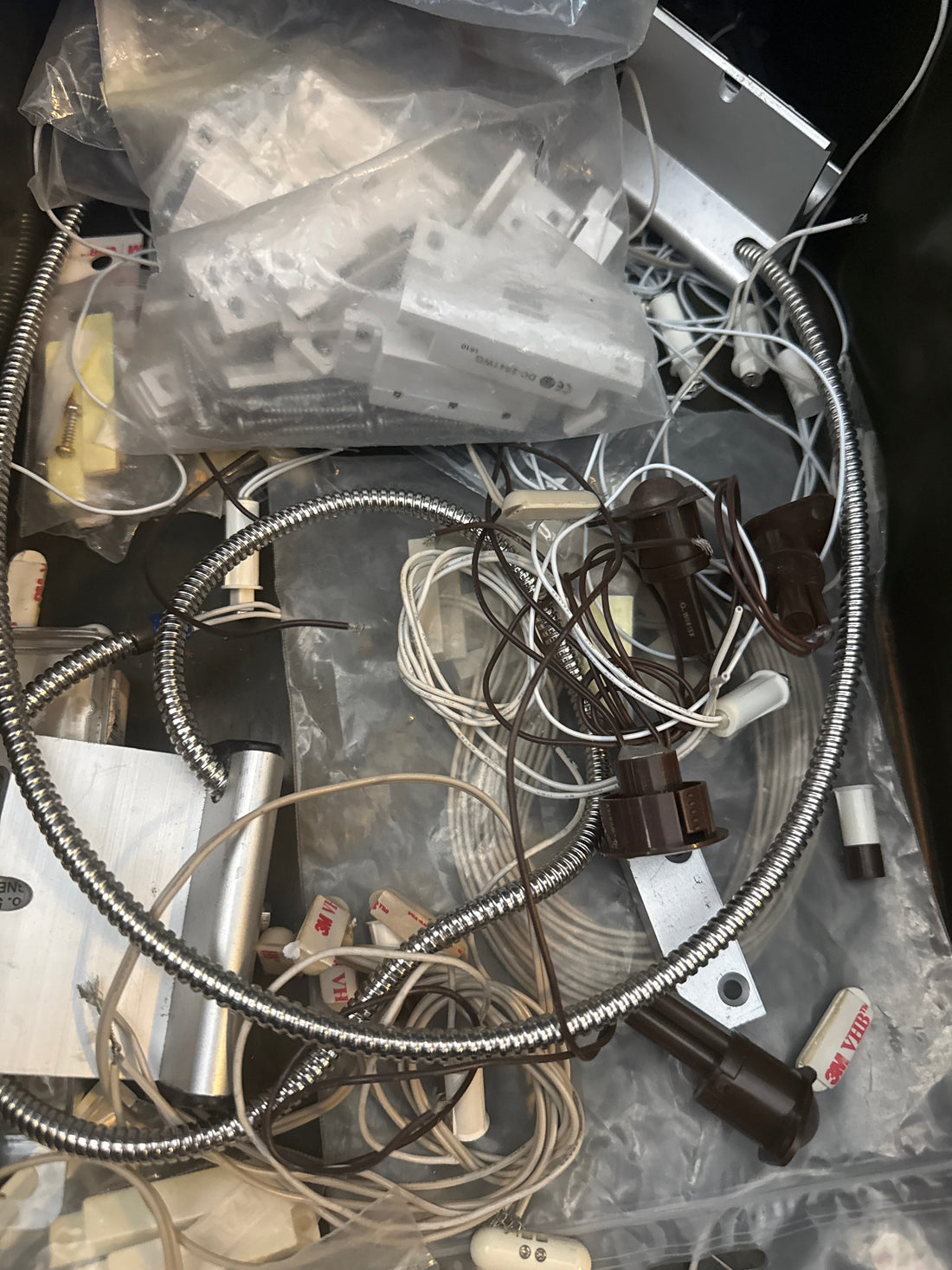

Contact types and typical applications

Recessed contacts

Recessed contacts provide a clean appearance, but drilling location and alignment are critical. They may be unsuitable where fire-rated door restrictions, hollow construction, weather exposure or future service access create problems.

Surface-mounted wide-gap contacts

These are often easier to align, inspect and replace. Commercial models are available with durable housings, armored cable and stronger magnets for demanding openings.

Overhead and roll-up door contacts

Overhead doors move, flex and vibrate more than pedestrian doors. Use a contact specifically designed for that movement, mounting surface and environmental exposure.

Specialty contacts

Outdoor gates, freezer doors, hazardous areas and high-security openings can require weather-rated, balanced, tamper-resistant or otherwise specialized devices.

Steel doors need extra attention

Steel can change the effective magnetic field. The correct contact may require a manufacturer-approved spacer, bracket or magnet orientation. Do not assume a switch rated for a particular gap on a nonferrous test surface will perform identically when mounted against steel.

Verify the manufacturer’s data and test the contact in its final installed position.

How to diagnose an intermittent door zone

1. Review the alarm and event history for the exact zone and time.
2. Inspect the door, hinges, closer, latch and frame before blaming the alarm panel.
3. Observe the switch state with the door fully latched.
4. Apply light push-and-pull pressure to the closed door and watch for zone changes.
5. Cycle the opening repeatedly at normal operating speed.
6. Check mounting security, cable damage, splices and end-of-line resistance.
7. Measure or compare the installed gap against the manufacturer’s specification.
8. Test the full circuit at the control panel when field wiring is suspect.

Intermittent faults can also come from damaged cable, corrosion, loose terminals or incorrect circuit supervision. Replacing the magnet will not correct those problems.

Installation checklist

• Match the contact to the door type, traffic and environment.
• Use the magnet supplied or approved for that switch.
• Mount both parts rigidly and protect exposed wiring.
• Confirm the closed position across normal door movement.
• Verify that the zone opens before the door creates a meaningful security gap.
• Use the panel manufacturer’s required end-of-line supervision.
• Label the zone clearly and document the installed model.
• Test the final alarm signal and restoration at the central station.

Repairing nuisance alarms protects the entire response plan

Repeated false alarms train users to ignore notifications and can create avoidable dispatches. Correcting the door hardware, contact selection and circuit condition is better than bypassing the zone or widening an entry delay to hide the problem.
