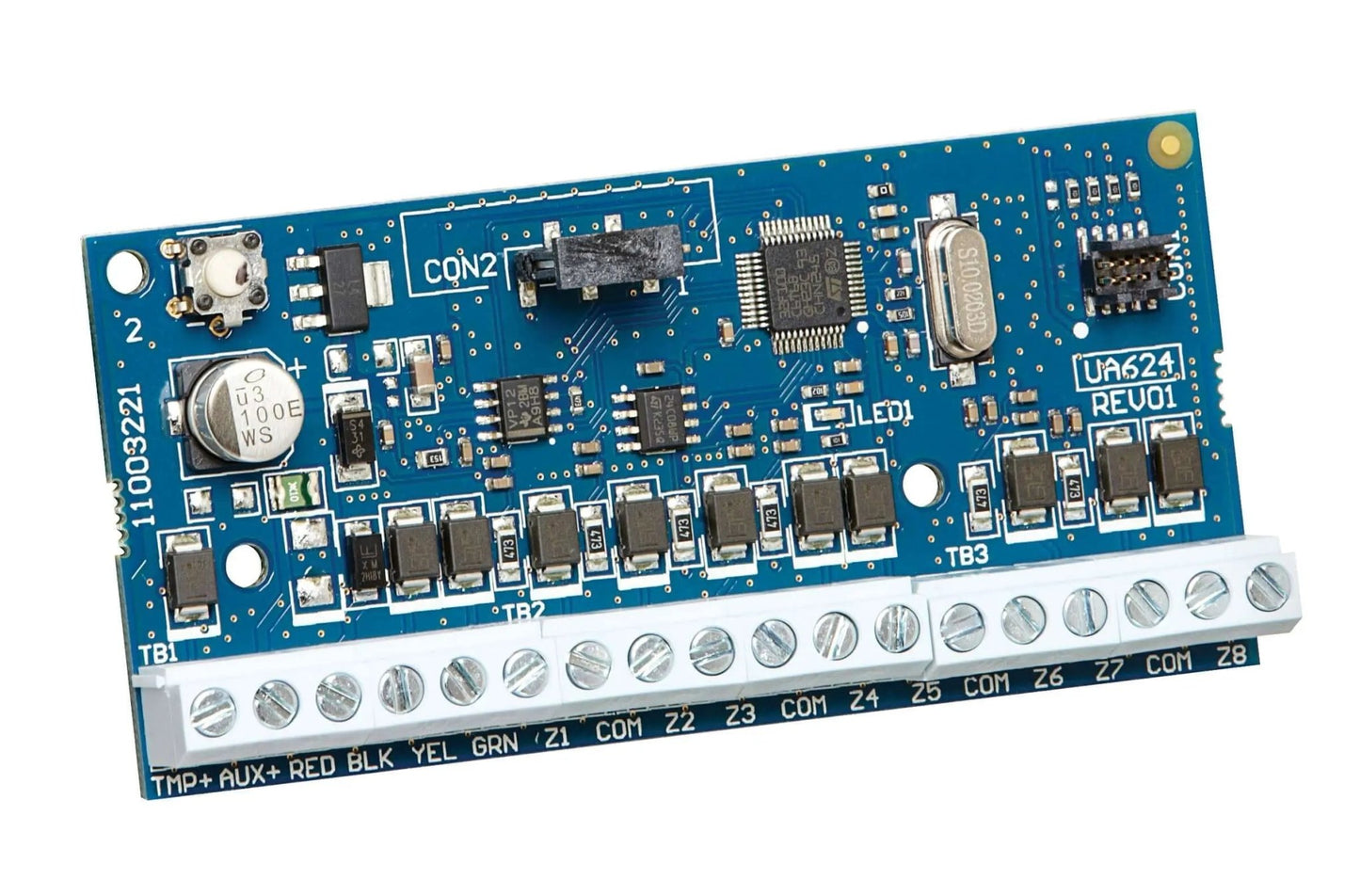

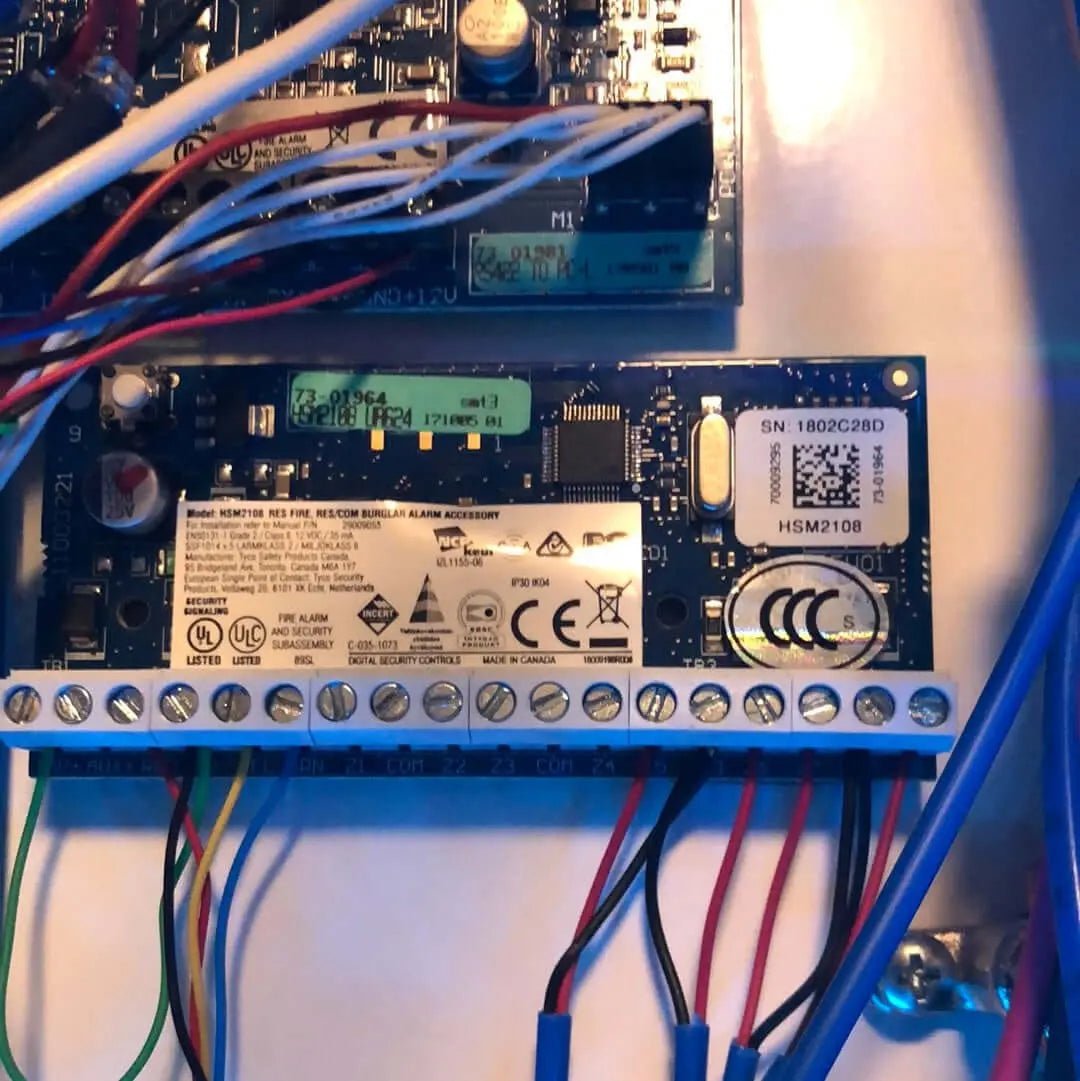

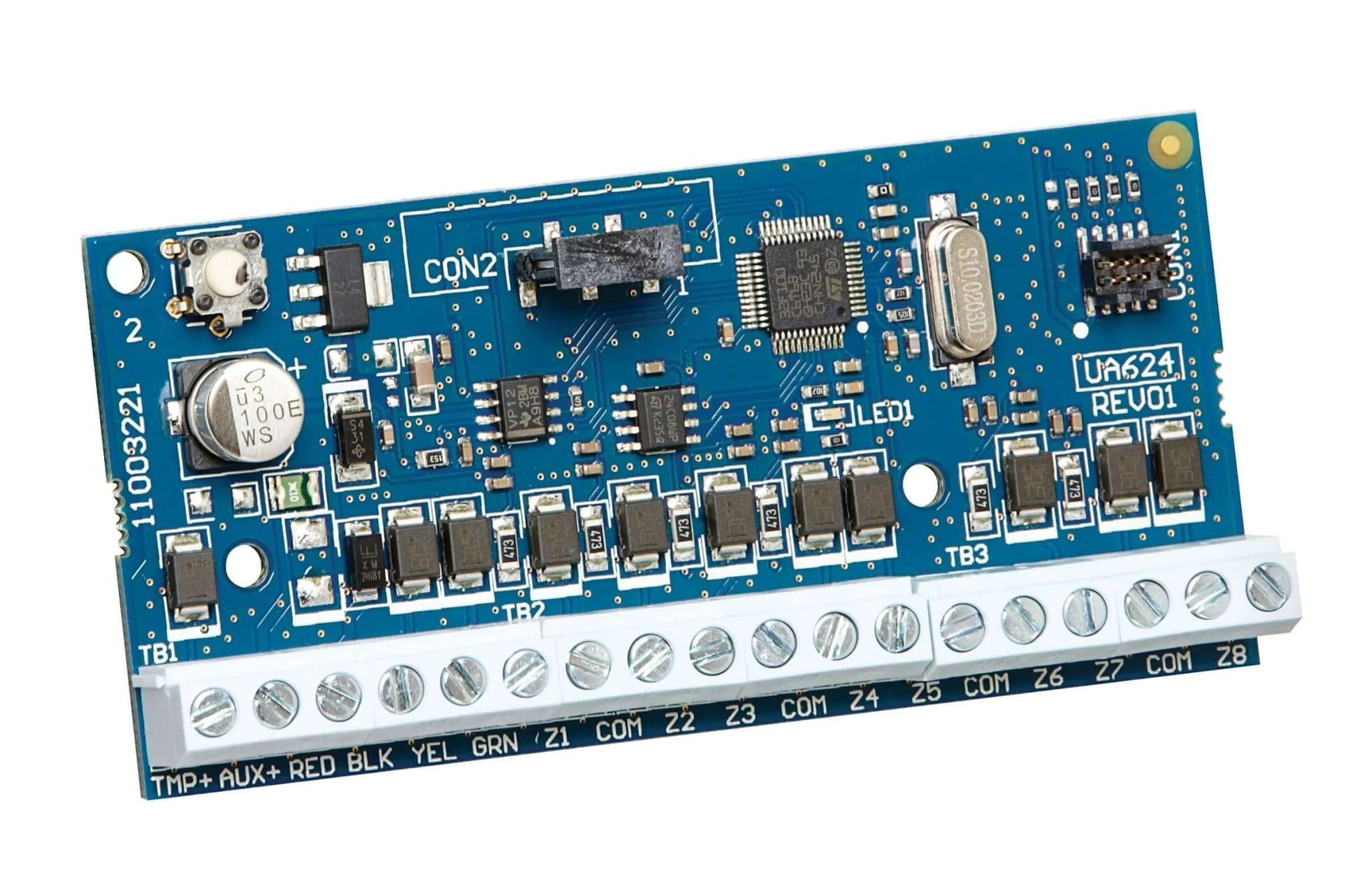

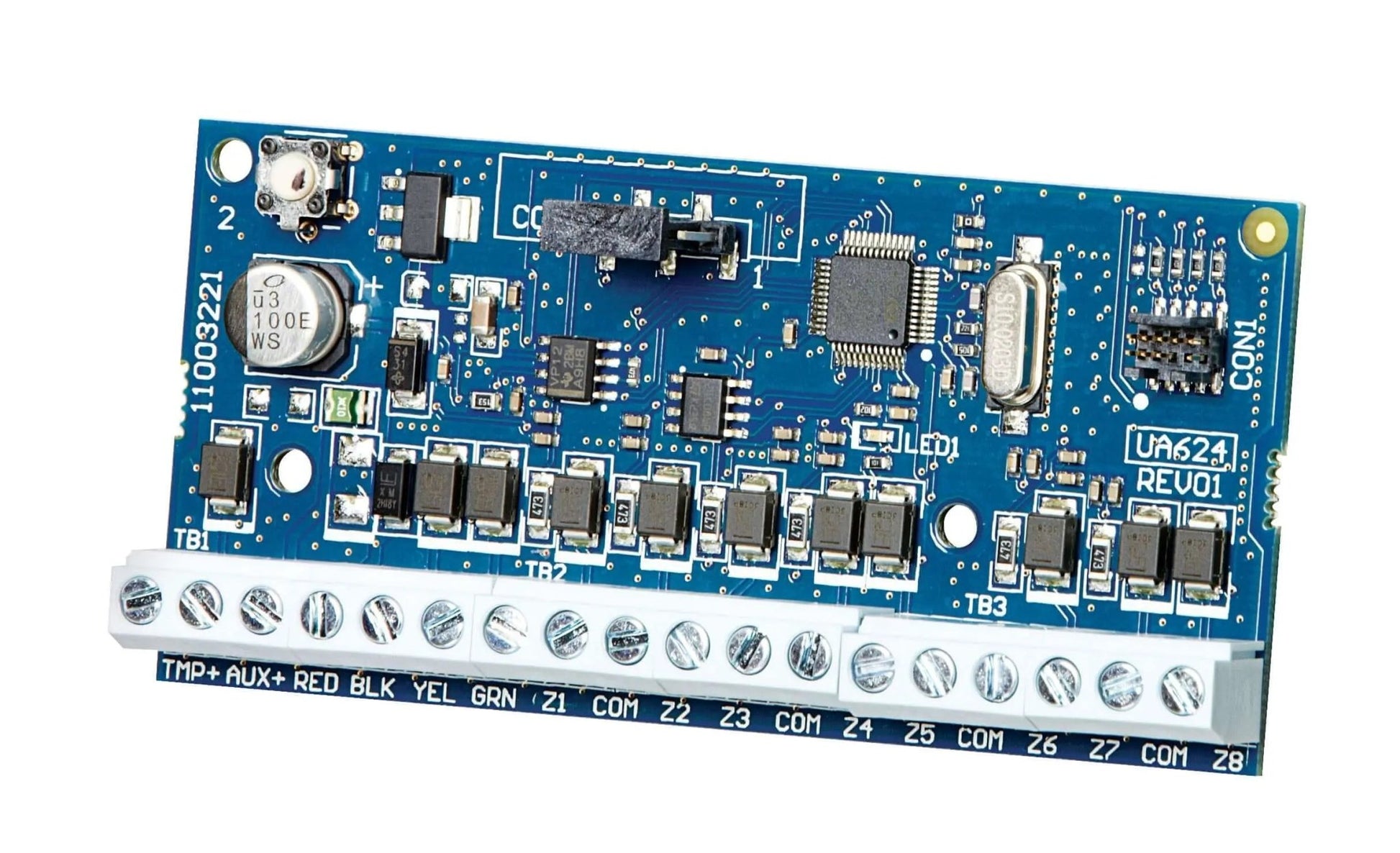

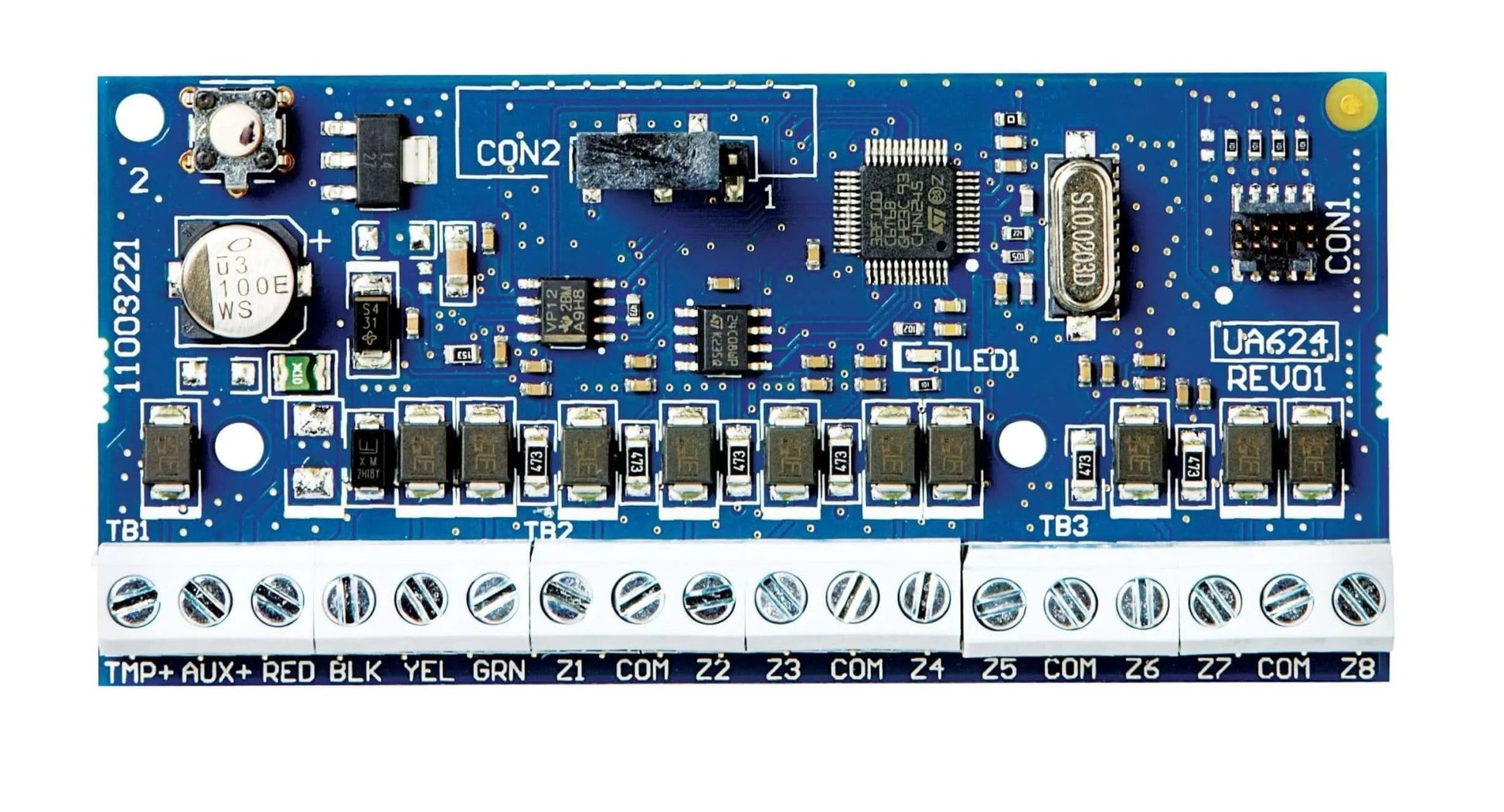

The DSC HSM2108 adds eight programmable hardwired zones to a compatible PowerSeries Neo alarm system. It is a practical way to expand an existing panel for additional door contacts, motion detectors and other supported hardwired initiating devices.
Key features
Adds 8 hardwired zones
Provides up to 125 mA of PTC-protected auxiliary power
Connects to the panel's four-wire Corbus
Supports supervised module enrollment and tamper monitoring when installed as specified
Multiple modules can be used when supported by the connected panel
Compatibility and installation
The HSM2108 must be enrolled and programmed by a qualified installer. The number of supported modules and available zone assignments depends on the PowerSeries Neo panel model and its existing configuration. Verify panel capacity, Corbus current, wire length, enclosure, tamper circuit and end-of-line requirements before installation.
This listing is for the HSM2108 expansion module only. It does not include an alarm control panel, enclosure, sensors, transformer, backup battery or monitoring service.
Professional installation and support in Texas
Avenger Security provides system design, installation, programming and service across Austin, Central Texas and statewide. New clients considering new service can request a no-cost onsite visit and up to one hour of initial consultation. Existing troubleshooting, diagnostics and repair are billable services.
