Resideo WAVE2 Two-Tone Indoor Siren – 106 dBA

Resideo WAVE2 Two-Tone Indoor Siren

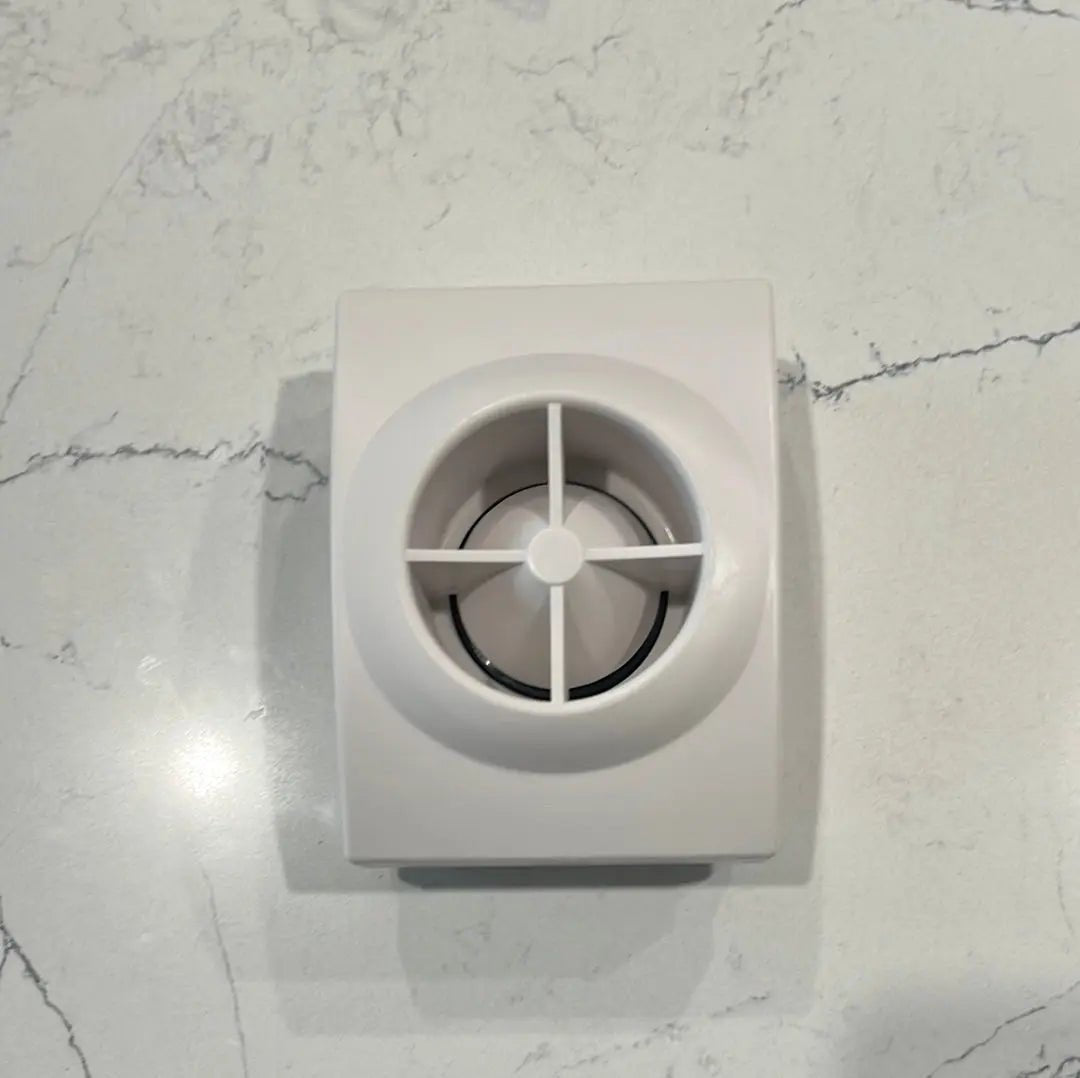

The Resideo WAVE2 is a compact, high-output indoor siren for compatible 12 VDC alarm systems. Its hinged enclosure and terminal block simplify installation while providing separate steady and warble sound inputs.

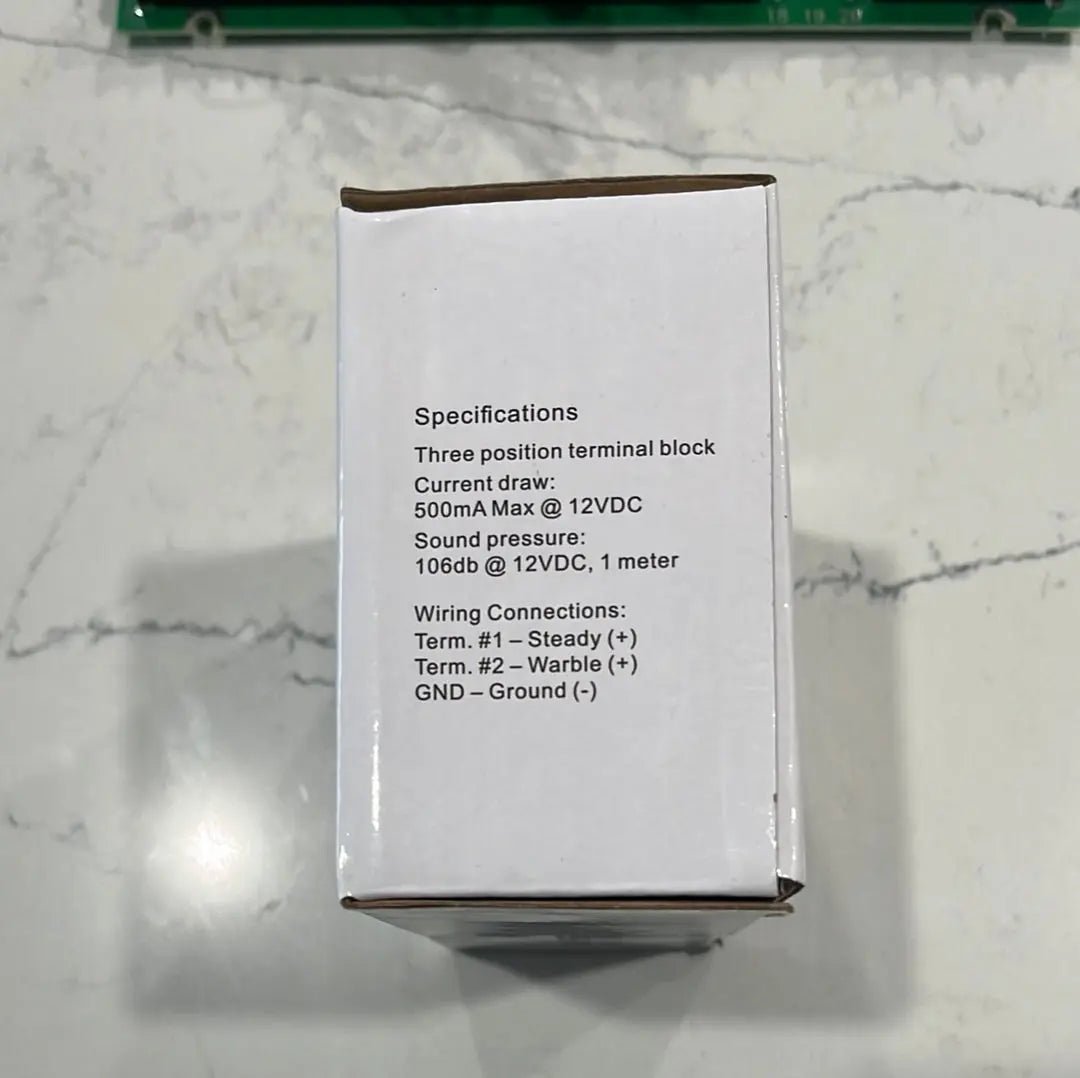

Key specifications

• 106 dBA sound output at 1 meter
• 12 VDC operation with approximately 500 mA current draw
• Selectable steady or warble sound through separate terminals
• Vertical, horizontal, corner, or ceiling mounting
• Hinged housing opens without complete disassembly
• UL 464, UL 985, and UL 1023 listed applications

Installation note: Confirm the control panel’s alarm-output voltage and available current before connecting the siren. Use listed wiring and follow the panel, siren, and applicable code requirements.
